SENSIT HXG-3 Series Advanced Combustible Gas Leak Detectors-

Downloads: datasheet manual

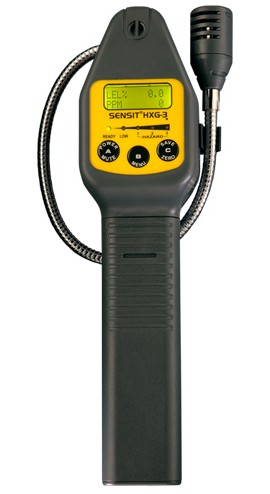

SENSIT HXG-3 Series Advanced Combustible Gas Leak Detectors

These Combustible Gas Leak Detectors detect a variety of combustible gasses, ranging from Ammonia, Gasoline, Natural Gas, Propane, and other volatile organic compounds (VOCs). They detect in both LEL% and ppm.

SENSIT HXG-3 Advanced Combustible Gas Leak Detector with Calibration Kit, 100% LEL
HXG-3 $930.05 USD
Was: $979.00
Availability:
6 in Stock
SENSIT HXG-3 Advanced Combustible Gas Leak Detector, 100% LEL
HXG-3 $779.00 USD
Was: $820.00
Availability:
2 in Stock
SENSIT HXG-3 Advanced Combustible Gas Leak Detector with Pump, 100% LEL
HXG-3P $952.85 USD
Was: $1,003.00
Availability:
2 in Stock
SENSIT HXG-3P Advanced Combustible Gas Leak Detector with Pump and Calibration Kit, 100% LEL
HXG-3P $1,103.90 USD
Was: $1,162.00
Availability:
2 to 3 Weeks

SENSIT HXG-3 Offers

Features an IR Communication window, allowing the instrument to communicate with Calibration Stations and Computers to download calibration data or download readings.

The Internal Pump in the HXG-3P provides better sensor protection and a faster response then the HXG-3.

The audible and visual alarms will warn you of any potential hazardous conditions. The tick-rate control helps you quickly find the source of gas leaks.

Features

  • Intrinsically Safe Design (Certified)
  • Displays LEL and PPM
  • Audible/Visual Alarms
  • Infrared Downloading
  • Long-life, Low-Cost Sensor
  • Simple Calibration
  • Water/Dust Filter
  • Backlit Display
  • Adjustable Tick-Dial Leak Detection

Easy to get started

  1. Press Power
  2. Wait 45 Seconds for Automatic Zeroing
  3. Begin to Use
View the Quick Start Guide for More Details

Partial List of Gasses Sensed

  • Acetone
  • Alcohol
  • Ammonia
  • Butane
  • Gasoline
  • Halon
  • Hydrogen
  • Jet Fuel
  • Ethylene Oxide
  • Methane
  • Natural Gas
  • Propane
  • Refrigerants
  • Solvents

Applications

  • Locate Small Gas Leaks
  • Area Monitoring
  • Arson / Accelerant Detection
  • Chemical Detection

SENSIT HXG-3 Specifications

LEL %
Resolution 0.1%
Range 0 to 100% LEL
Accuracy ±10%
ppm
Resolution 10ppm
Range 0 to 50,000ppm
Accuracy ±10%
General Specifications
Session Saves 6
Alarm - LEL% 50%
Warm-up Time 30 seconds
Purge Time 0 seconds
Size 11.5” x 3” x 2.2” (29.21 x 7.62 x 5.89 cm)
Weight 1.2 lb. (0.54 kg)
Operational Temperature 0 to 120 F (-17.8 to 48.8° C)
Battery Life Alkaline: Approximately 12 hrs. Continuous
Click here for complete specifications on the SENSIT HXG-3 Series

What's included with the SENSIT HXG-3 Series

  • SENSIT HXG-3 Series Advanced Combustible Gas Leak Detectors
  • SENSIT HXG-3 Videos
