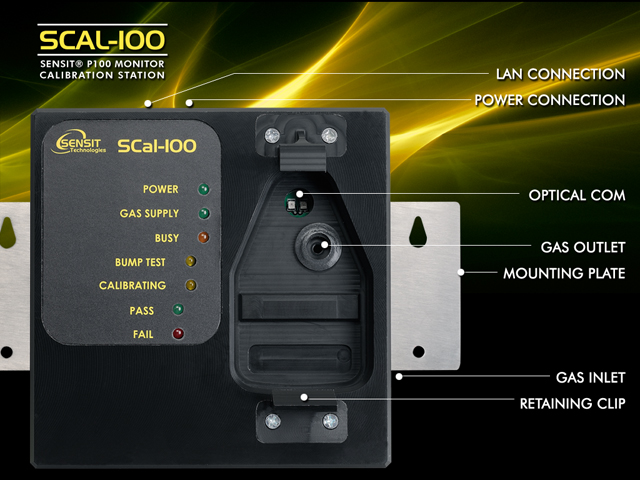

Automatic bump and calibration station for SENSIT P100 Personal Gas Monitors equipped with two way communication. SCAL-100 is also used to upload data from the P100 event log.
Automatic bump and calibration station for SENSIT P100 Personal Gas Monitors equipped with two way communication. SCAL-100 is also used to upload data from the P100 event log.
| Call for Pricing | |
| Availability | 2 to 3 Weeks |
CAL-100 quickly bump tests and calibrates SENSIT P100 Monitors, stores data and manages instrument testing compliance.
All calibration data, time, date, sensor and pump performance data is then stored in the calibrator for download to your computer. The included data management software allows automatic uploading from calibrator, creates compliance reports, and alerts selected personnel of overdue or failed calibrations.
Data Management Software
Includes SCal-N Network Data Management Software that creates compliance reports and alerts selected personnel of failed or overdue calibrations. The Data is stored in an SQL Server. Various reports and alerts can be viewed, printed, e-mailed or stored as an Excel spreadsheet. When configured, SCAL-N will automatically alert operators and supervisors of important data depending on their preference settings.
Features
Easy to get started
View the Quick Start Guide for More DetailsSoftware Reporting Features
Software Requirements
| Dimensions | 6 x 6 x 1.75" (15.24 x 15.24 x 4.5cm) |
| Weight | 2lbs (0.9kg) |
| Operational Temperature | 40 to 122°F (5 to 50°C) |
| Max Inlet Pressure | 20psi |
| Power Supply | 100-240V AC 50/60Hz 0.2A input with 2V DC 0.5A output |
| Dimensions | 6 x 6 x 1.75" (15.24 x 15.24 x 4.5cm) |
| Weight | 2lbs (0.9kg) |
| Operational Temperature | 40 to 122°F (5 to 50°C) |
| Max Inlet Pressure | 20psi |
| Power Supply | 100-240V AC 50/60Hz 0.2A input with 2V DC 0.5A output |
